THE MOST INTELLIGENT AUTONOMOUS FORKLIFT

THE MOST INTELLIGENT AUTONOMOUS FORKLIFT

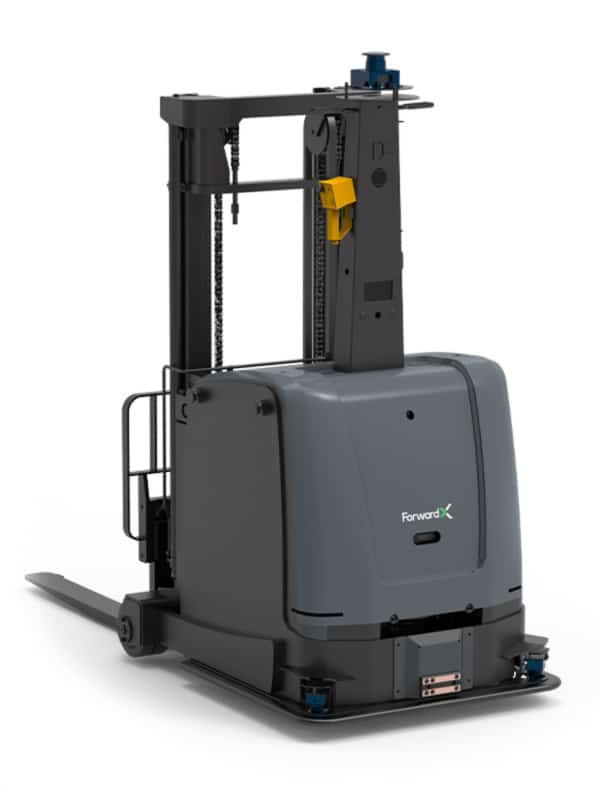

APEX C1500-L

Through the leading multi-sensor fusion technology and computer vision, Apex precisely and intelligently handles pallets in various warehousing, logistics, and manufacturing scenarios.

SAFETY

• High operational accuracy with SLAM navigation and visual recognition.
• 360° obstacle detection and avoidance reduces the risk of accidents and ensures the safety of workers, goods,and vehicles.

EFFICIENCY

• Capable of continuous operation at increased efficiency.
• Strong navigation and positioning capability to ensure 60mm (2.3 in) pallet placement precision.
• Can identify the angle at which a pallet is placed and adjust autonomously in real-time.

COMPATIBILITY

• Suitable for pallet docking, the Apex C1500-L supports factory and warehouse scenarious.
• Covers the full storage proces and effectively supports your point-to-point transport.
• Compatible with GMA, Epal, T11, and Australian hardwood pallets. Also compatible with megabins and any other forklift transportable products

Improve Efficiency

Autonomous round the clock operations allows employees to focus on value-added tasks, significantly improving production efficiency.

Keep Workers Safe

Computer vision-based perception guarantees the safety of everyone involved.

Reduce Operation Costs

Reducing forklift operating costs and increasing worker productivity leads to a quick ROI.

What is an AMR?

AMRs (Autonomous Mobile Robots) are a type of autonomous robot that uses built-in sensors and technology to autonomously move goods around factories and warehouses without the need for guides and markers.

AMRs are an adaptable, flexible, and accessible solution for improving order picking, packing, pallet transport, trolley/cage towing, production line handling, and more! With a good AMR in place, you will increase picking productivity and reduce wasted movement in your operations, making you and your team more efficient.

Find Out More

IMPROVE YOUR OPERATIONS WITH THE APEX AUTONOMOUS FORKLIFT

Below are some of the everyday applications that can be revolutionised by the Apex forklift

Receiving

Putaway

Restocking

Crosszone Handling

Conveyor Docking

Outbound

Apex C1400-L

Apex C1500-L

Apex 2000

DIMENSIONS

Length
Width
Height
Turning Radius
Travel Speed
Wheelbase
Ground Clearance

1,665 mm (65.55 in)
950 mm (37.4 in)
1,900 mm (74.8 in)

2,450 mm (94.65 in)
1,112 mm (43.77 in)
2,200 mm (86.61 in)
1,350 mm (53.14 in)
1.5 m/s (3.4 mph)
1,000 mm (39.37 in)
70 mm (2.75 in)

1,739mm (68.46 in)
1,032 mm (40.62 in)
1,737 mm (68.38 in)

LOAD CAPACITY

Weight
Max. Load Capacity

880kg (1,940 lbs)
1,400kg (3,086 lbs)

2,700 kg (5,952 lbs)
1,500 kg (3,306 lbs)

650 kg (1,433 lbs)
2,000 kg (4,410 lbs)

FUNCTION

Lift
Fork Carriage Width
Fork Carriage Connection class
Lift Speed Laden/Unladen
Lowering Speed Laden/Unladen
Load Centre Distance
Load Distance, Centre Of Drive Axle To Fork
Height With Extension
Aisle Width (Pallet 1000×1200 Sideways)

3,000 mm (118.11 in)
460/560/680 mm (18.11/22.04/26.77 in)
2A
100/150 mm/s (3.93/5.90 in/s)
150/100 mm/s (5.90/3.93 in/s)
500 mm (19.68 in)
133 mm (5.23 in)
3,935 mm (154.92 in)
2,800 mm (110.23 in)

PERFORMANCE

Navigation Mode
Positioning Mode

Road Network
Laser SLAM/Visual
Tag/Visual Semantics

COMMUNICATION

Wi-Fi (IEEE 802.11a/b/g/n/ac)
Wi-Fi (IEEE 802.11ax)
Cellular Network (Public 4G/5G)
Cellular Network (Private LTE)

Yes
Optional
Optional
Optional

POWER

Endurance
Battery Type
Charging Mode

~8 hrs per charge
Li-LFP
DC CC-CV

SENSORS

LiDAR
UWA Cameras (front)
UWA Cameras (side)
3D Cameras
Odometer
IMU

Yes
Yes
Yes
Yes
Yes
Yes

SAFETY

Safety Contact Edge
Fork Safety Sensor
Emergency Stop Button

1
Yes
2 (front)
