INTELLIGENTLY DESIGNED FOR AUSTRALIAN ROLL CAGES FLEX 60-T

Empower your warehouse or retail store with world leading person-to-goods AMR solutions provider ForwardX Robotics.

Boost productivity and streamline workflows.

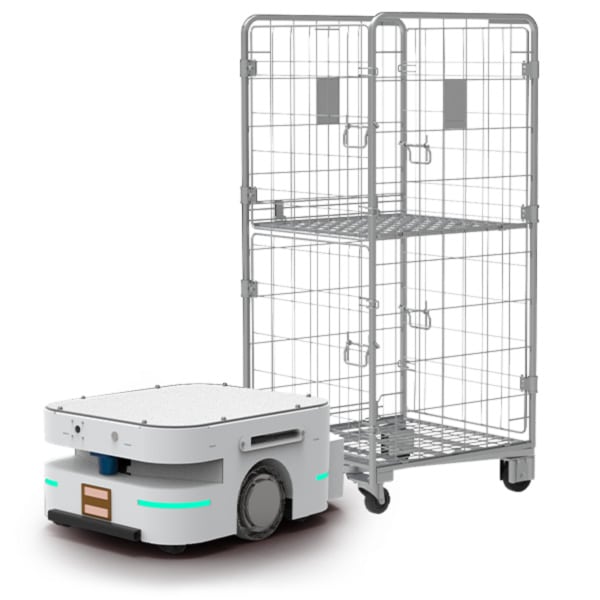

The all-new Flex 60-T is a first-of-its-kind AMR with a unique docking and towing system that’s designed to work with Australian roll cages.

The Flex 60-T AMR is compatible with both Australian standard A & Z base roll cages

High operational flexibility with visual Simultaneous Localisation and Mapping (SLAM) navigation

Autonomous docking and towing of A & Z-base Roll Cages

Maximum towing capacity of up to 300kg allows for a wide range of products and materials to be moved safely

180° obstacle detection and avoidance minimises the risk of worker injury and product damage

Improved Productivity

By offering a range of cage trolley configurations, the Flex 60-T can instantly improve your overall productivity, saving time and manual labour.

Australian Roll Cage Compatibility

This cutting-edge AMR can seamlessly transition between Australian Z and A-base roll cages to optimise workflow and reduce operational costs.

Intelligent Technology

The Flex 60-T includes autonomous cage trolley towing and docking to reduce manual labour and improve movement accuracy.

What is an AMR?

AMRs (Autonomous Mobile Robots) are a type of autonomous robot that uses built-in sensors and technology to autonomously move goods around factories and warehouses without the need for guides and markers.

AMRs are an adaptable, flexible, and accessible solution for improving order picking, packing, pallet transport, trolley/cage towing, production line handling, and more! With a good AMR in place, you will increase picking productivity and reduce wasted movement in your operations, making you and your team more efficient.

Find Out More

Flex 60-T

DIMENSIONS

Length
Width
Chassis Height

580 mm (22.83 in)
480 mm (18.89 in)
285 mm (11.22 in)

LOAD CAPACITY

Weight
Towing Module
Traction
Towing Capacity

75 kg (165 lbs)
Yes
150 N
300 kg (661 lbs)

PERFOMANCE

Navigation Mode

QR Code / Laser SLAM / Visual SLAM

COMMUNICATION

Wi-Fi (IEEE 802.11a/b/g/n/ac)
Cellular Network (Public 4G/5G)

Yes
Optional

POWER

Endurance
Battery Type

~ 8 hrs per charge
LFP

SENSORS

LiDAR
UWA Cameras
Marker Cameras
3D Cameras

1
1
1
1

INTERACTION

Audio
Lights
HMI

Yes
Yes
–

SAFETY

Safety Contact Edge
Emergency Stop Button
Audible and Visual Alarm
Movement Obstacle Perception

Yes
Yes
Yes
Yes

Case Studies

AMRs: DHL Coffee Distribution Warehouse Case Study

View Project

AMRs JD.com Online Retailer Case Study

View Project

Perfect for Towing our Industry Leading Range of Roll Cages

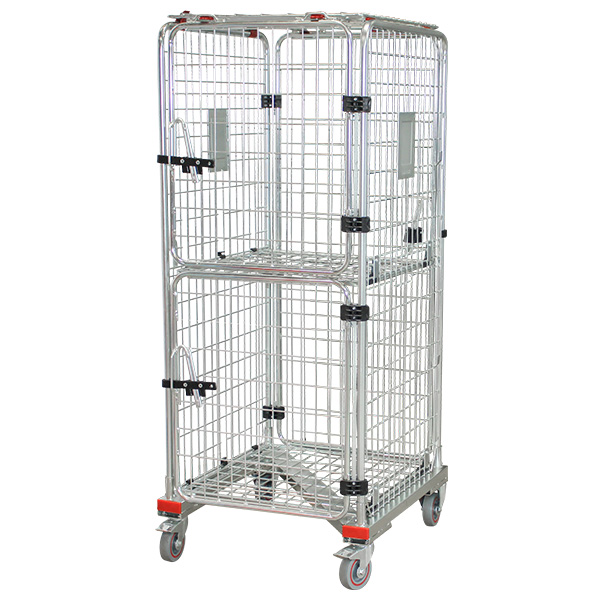

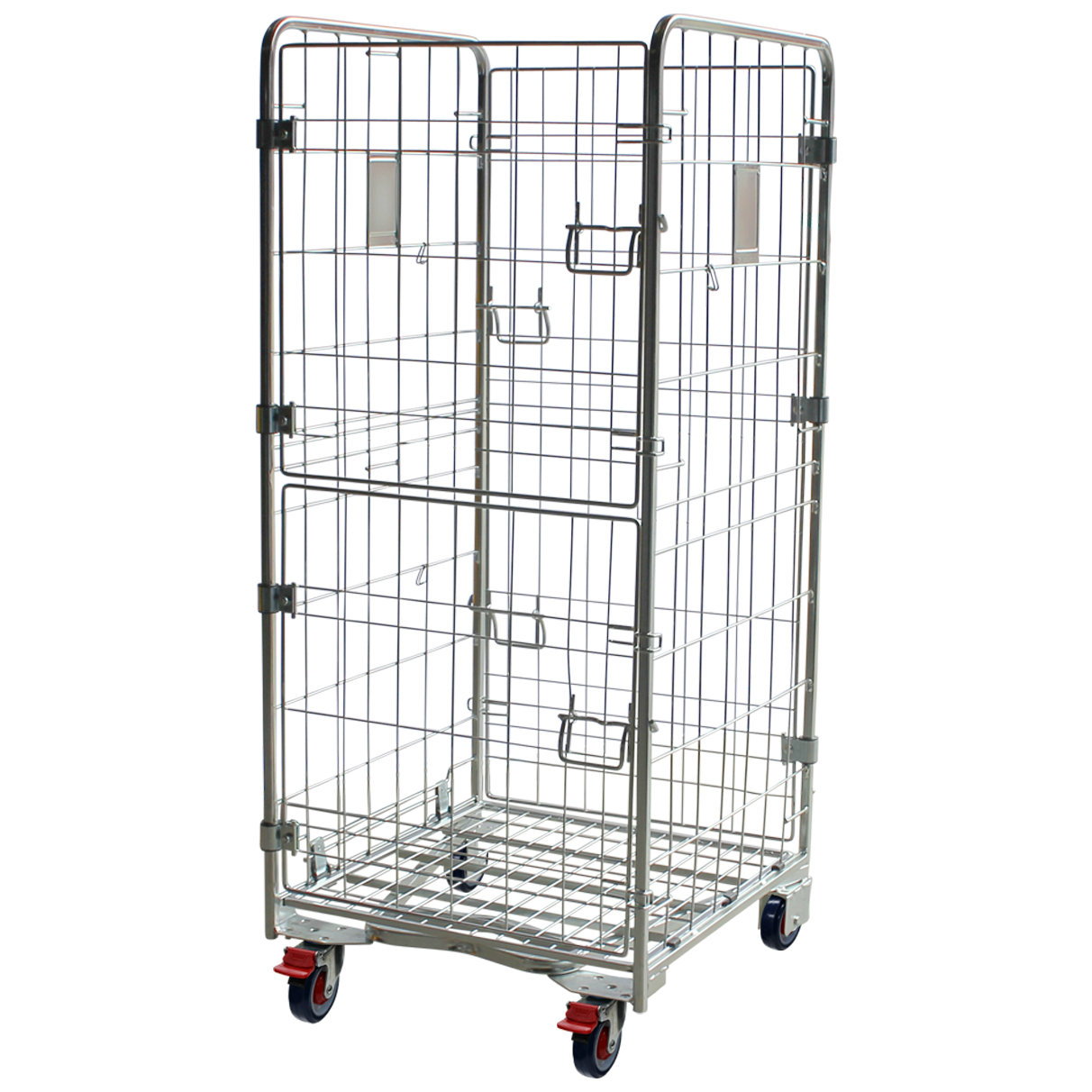

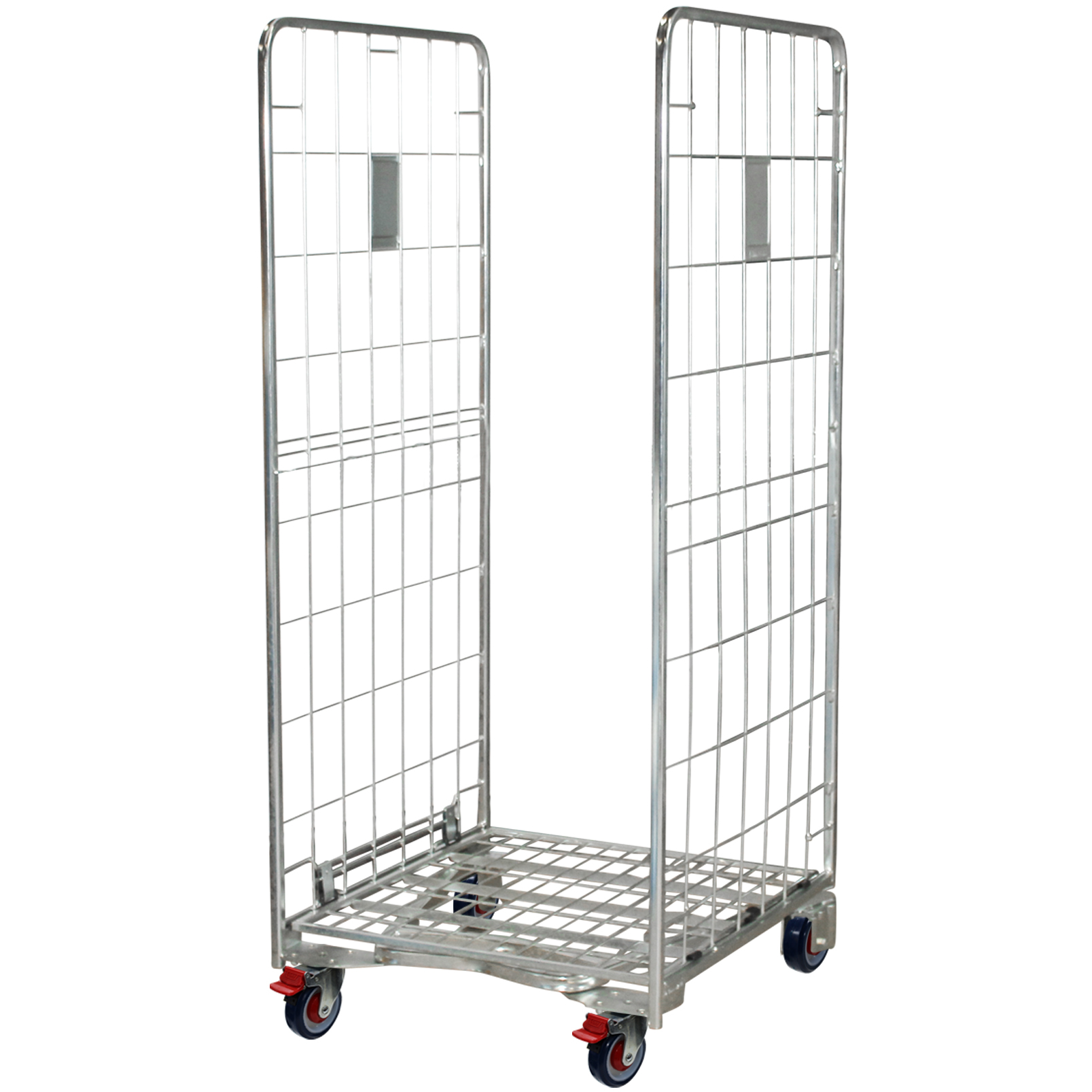

Richmond Rolling Solutions offers a wide selection of versatile A and Z-Base Roll Cages that are compatible with the Flex 60-T AMR.

View the range online or chat to one of our friendly team members about which model is best suited to your needs.
