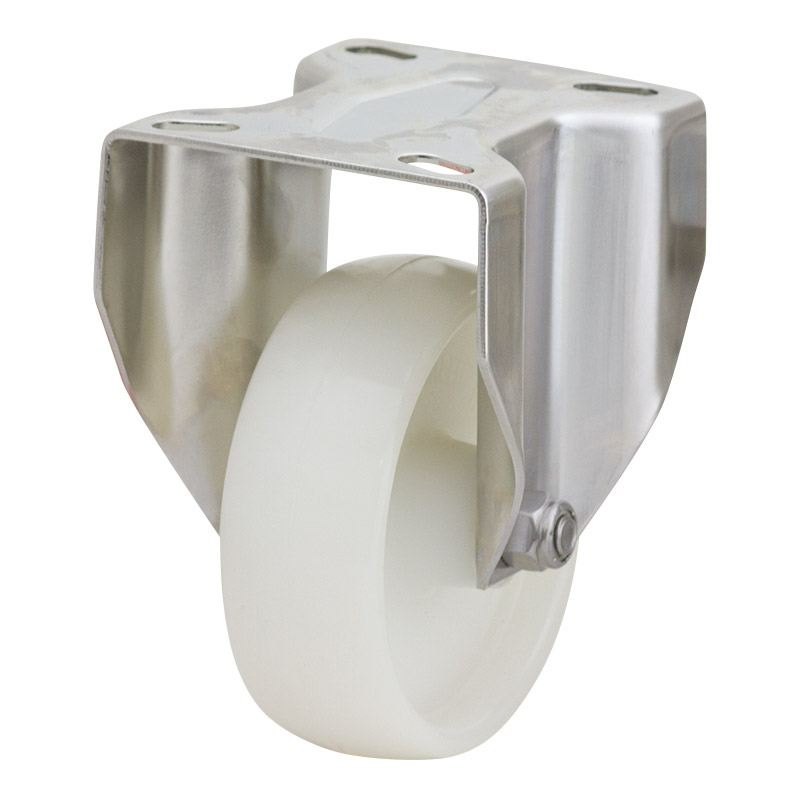

100mm Nylon Wheel 200kg Capacity Castor (R4143)

The R4143 from Richmond Rolling Solutions is a rigid frame castor and uses a nylon wheel. This rigid castor is in our stainless steel excel plate range and has a maximum capacity of 200kg. The R4143 is assembled with plain bearings on the castors axle and is mounted with the baseplate. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The outside diameter of the nylon wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401).

View Specifications View Specifications Shipping Information

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code	R4143
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY401
Wheel Bearing Type	Plain Bore
Castor Height (mm)	133
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	110
