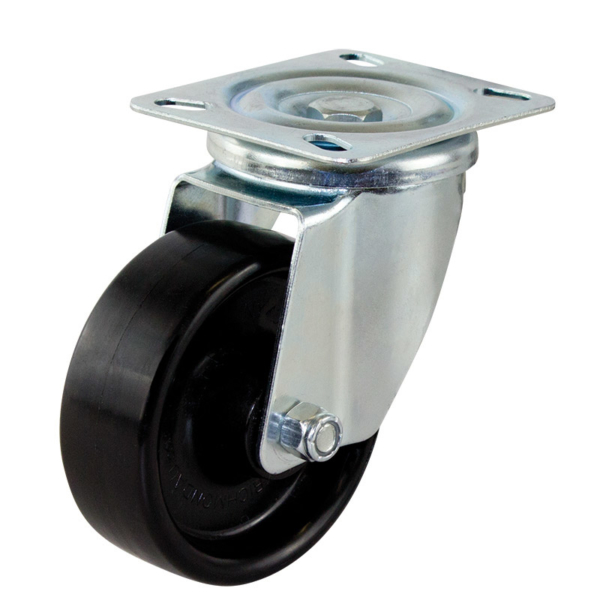

100mm Nylon Wheel 200kg Capacity Castor (S4032)

The S4032 from Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series plate range and can hold loads up to 200kg. The S4032 wheel is fitted with plain bearings and is baseplate mount. The swivel frame of this castor allows full swivel rotation to enable steering. The overall nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). To order this castor with a brake, search for S4032B.

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4032
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY401
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
