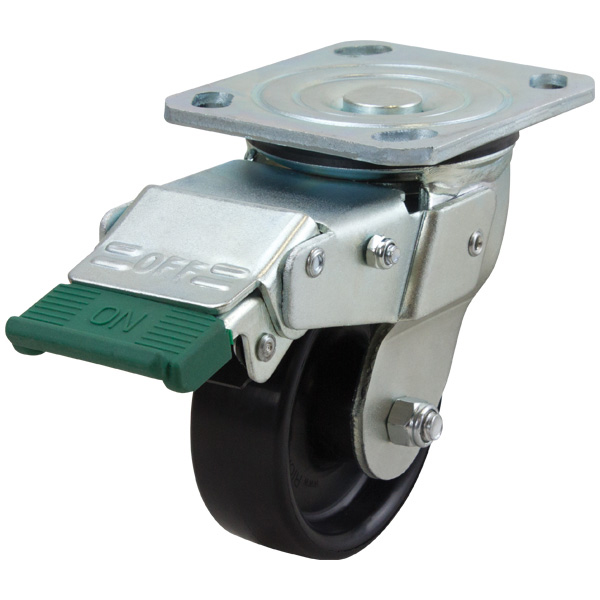

100mm Nylon Wheel 300kg Capacity Castor (S4433D)

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

Our 100mm Nylon Wheel Richmond Castor – S4433D is part of our huge range of heavy industrial castors. The wheel runs on a Plain Bearing and the diameter of the wheel is 100mm (4″). To view the Nylon wheel click here. The max load of this heavy industrial castor is 300kg and features a directional lock. The swivel frame of this castor allows full 360° rotation of the castor compared to a rigid castor which is generally used for single direction travel.

View Specifications View Specifications Shipping Information

Description

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.

Product Code	S4433D
Wheel Diameter (mm)	100
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY401
Wheel Bearing Type	Plain Bore
Castor Height (mm)	142
Swivel Radius (mm)	145
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	200
