100mm Polyurethane Tyre on Cast Iron Centre Bolt Hole 300 Series Castor (S4220B)

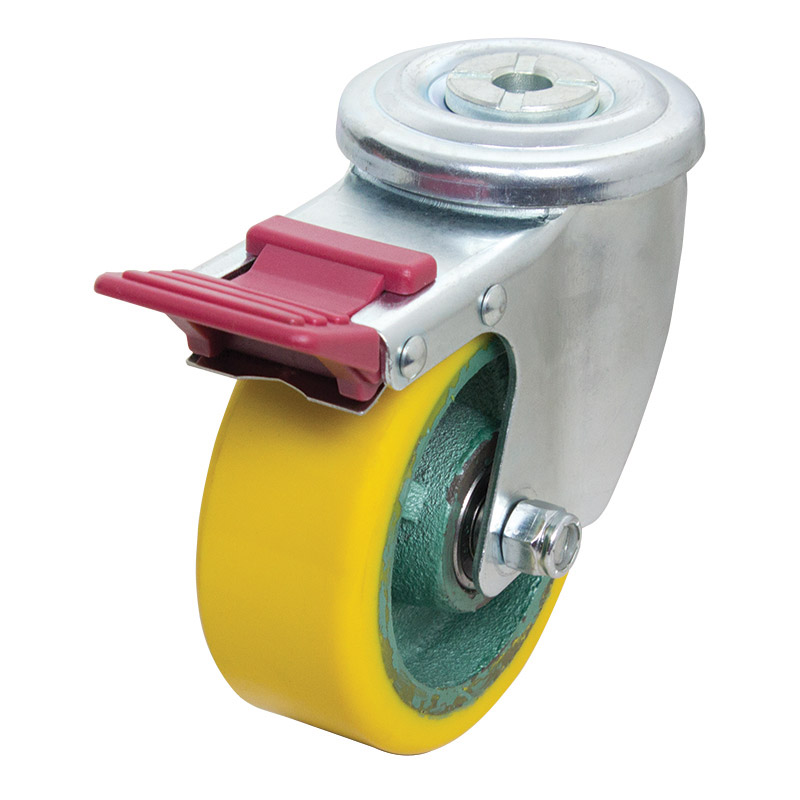

The S4220B from Richmond is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is in our 300 series bolt hole range and has a top load capacity of 200kg. The S4220B wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 100mm, the wheel width is 38mm and can be ordered separately (PU449). To order this castor without a brake, search for S4220.

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4220B
Wheel Diameter (mm)	100
Frame Type	Swivel with Brake
Wheel Width (mm)	38
Wheel Type	Poly Cast Iron
Wheel Code	PU449
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	130
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Swivel with Brake
