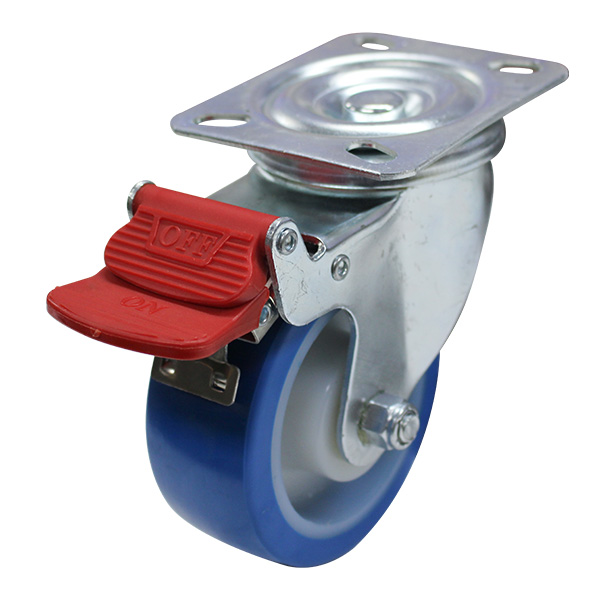

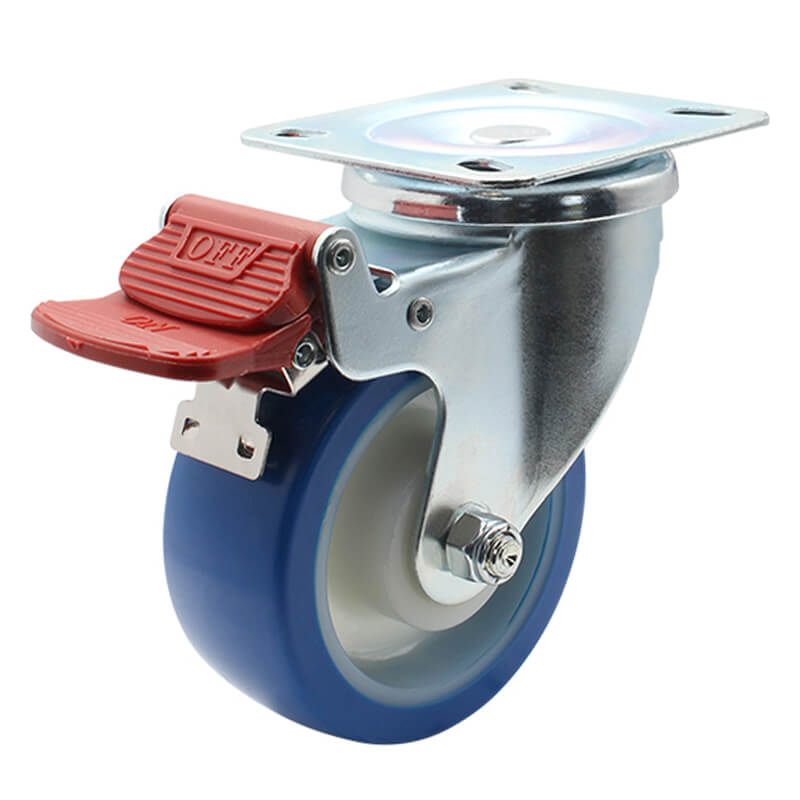

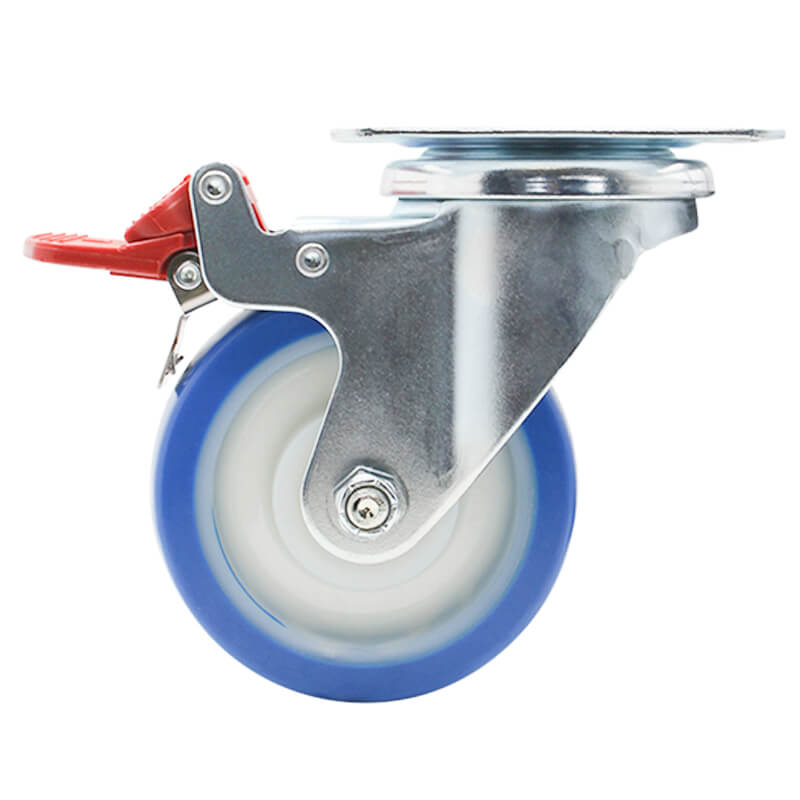

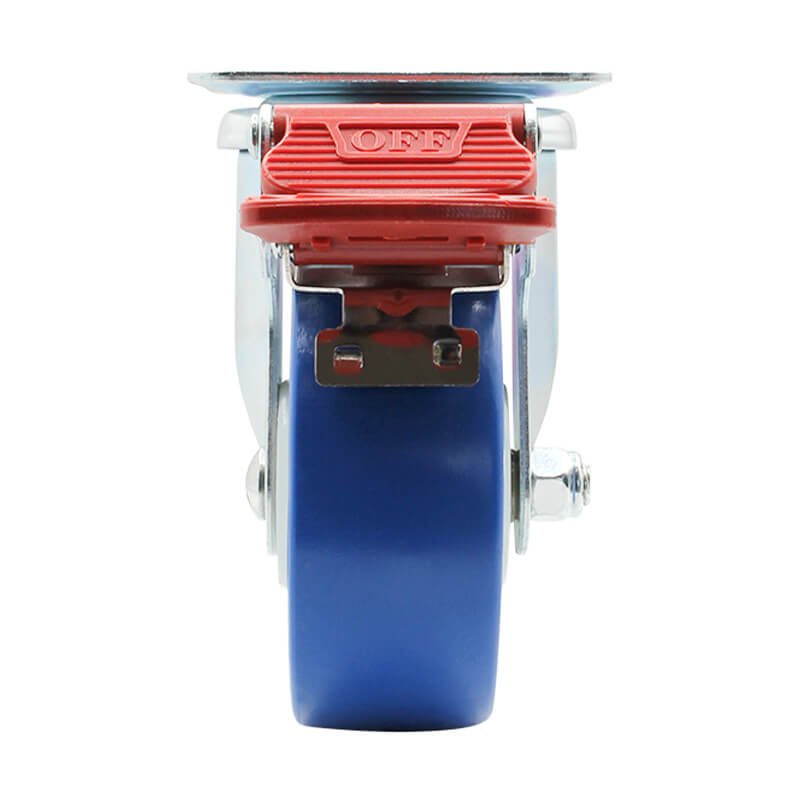

100mm Rebound Polyurethane Wheel 150kg Capacity Castor (S4054B)

The S4054B manufactured by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 150kg. The S4054B uses stainless steel roller bearings for wheel rotation and is plate mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The overall rebound polyurethane wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (RP4072). For the same castor without a brake, see S4054.

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4054B
Wheel Diameter (mm)	100
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Rebound Polyurethane
Wheel Code	RP4072
Wheel Bearing Type	Stainless Roller Bearing
Castor Height (mm)	130
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	150
Recommended Load Capacity (kg)	110
