High/Low Temp 100mm Wheel | 5/16" Axle Diameter (AL472-31)

Name: Richmond Wheel & Castor Co
Address: 665 Great South Rd, Penrose, Auckland, 1061, New Zealand
Telephone: +64 9-580 3038

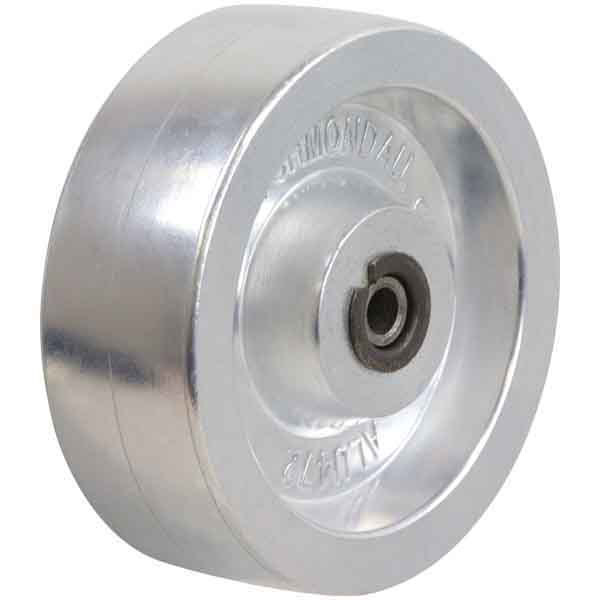

100mm diameter wheel manufactured from hardened aluminium
Manufactured with a high-temp DU bush & crowned rim profile
Suitable for -30°c to 280°c heat temperature ranges. (DU bush is reason for max. temp of 280°c)
Identical wheel to Al473 but c/w smaller boss width to suit Richmond Zinc Durolite castor frames
Optimal wheel for medium-high temperature ovens baking at a continual (or cycle) heat up to 280°c
Maximum 180kg load capacity per wheel
Aluminium material withholds heat so is susceptible to damage/marking non-slip or epoxy flooring

Product Code	AL472-31
Wheel Diameter (mm)	100
Tyre Width (mm)	36
Boss Width (mm)	40
Axle Diameter	5/16 inch (7.94mm)
Wheel Bearing Type	DU Oilless Bush
Temperature Range	-30° to 280°C
Wheel Type	Aluminium
Maximum Load Capacity (kg)	180
Recommended Load Capacity (kg)	150
