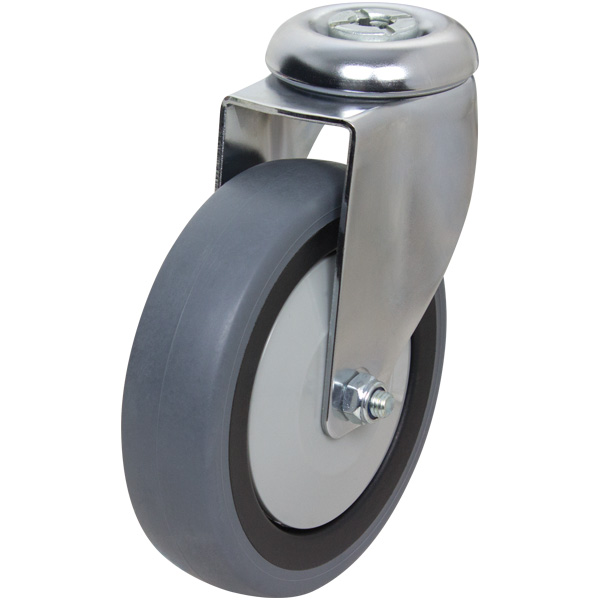

125mm Anti-Static Swivel Chrome Durolite Castor (S5569)

The S5569 from Richmond Rolling Solutions is a swivel frame castor and features a anti static wheel. This swivel castor is part of our chrome durolite bolt range and has a maximum capacity of 100kg. The S5569 wheel is fitted with ball bearings and is bolt mount. This castors swivel frame permits the load to be steered. The outside diameter of the anti static wheel is 125mm, the wheel width is 32mm and can be ordered separately (AS5005).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

Product Code	S5569
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Anti-Static
Wheel Code	AS5005
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45
