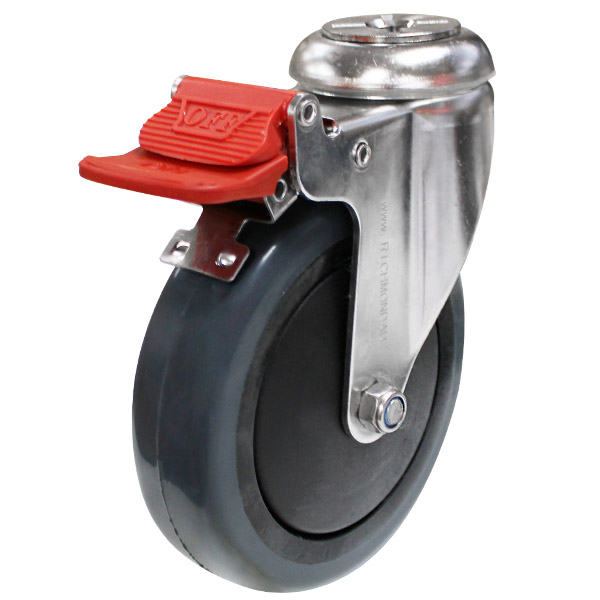

125mm Elastic Rubber Swivel Brake Castor (S5561B)

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S5561B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	32
Wheel Type	Elastic Rubber
Wheel Code	ER5368
Wheel Bearing Type	Stainless Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Grade 304 Stainless Steel

Swivel with Brake

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.

Addon Components

Addons for your 125mm Elastic Rubber Swivel Brake Castor (S5561B). Click the product that you’re interested in for more info.

Expanding Pintle For 19mm ID Round Tube - M12 x 90mm Bolt (OBT12-P1)

(063OBTPRD19-M12)

Expanding Pintle For 19mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P4)

(063OBTPSQ19-M12)

Expanding Pintle For 22mm ID Round Tube - M12 x 90mm Bolt (OBT12-P2)

(063OBTPRD22-M12)

Expanding Pintle For 22mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P5)

(063OBTPSQ22-M12)

Expanding Pintle For 28.5mm ID Round Tube - M12 x 90mm Bolt (OBT12-P3)

(063OBTPRD28-M12)

Expanding Pintle For 28.5mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P6)

(063OBTPSQ28-M12)

12mm Top Hat (Bore Reducer) to suit 8mm Fittings (RED1208OBT)

(100RED1208OBT)

12mm Top Hat (Bore Reducer) to to Suit 10mm Fittings (RED1210OBT)

(100RED1210OBT)
