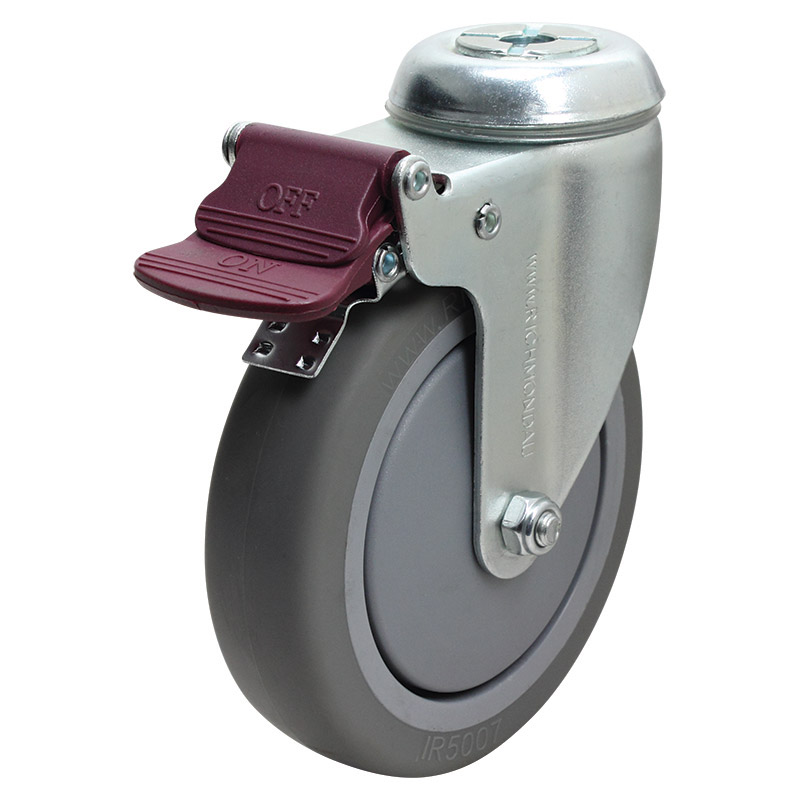

125mm Inst Rubber Swivel Single Bolt Castor (S5080B)

Ideal for use on mobile equipment in hospitals, nurseries, shops, industry and catering equipment the single bolt zinc durolite series can be fixed with a range of fittings to round or square tubing ensuring maximum functionality and performance. Available in a various colours for an aesthetically enhanced appearance designed to blend in with the equipment. This castor features a twin race swivel action for long life with pressed metal frame and zinc plated finish.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S5080B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR5007
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Swivel with Brake

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.

Addon Components

Addons for your 125mm Inst Rubber Swivel Single Bolt Castor (S5080B). Click the product that you’re interested in for more info.

Expanding Pintle For 19mm ID Round Tube - M12 x 90mm Bolt (OBT12-P1)

(063OBTPRD19-M12)

Expanding Pintle For 22mm ID Round Tube - M12 x 90mm Bolt (OBT12-P2)

(063OBTPRD22-M12)

Expanding Pintle For 28.5mm ID Round Tube - M12 x 90mm Bolt (OBT12-P3)

(063OBTPRD28-M12)

Expanding Pintle For 19mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P4)

(063OBTPSQ19-M12)

Expanding Pintle For 22mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P5)

(063OBTPSQ22-M12)

Expanding Pintle For 28.5mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P6)

(063OBTPSQ28-M12)

12mm Top Hat (Bore Reducer) to suit 8mm Fittings (RED1208OBT)

(100RED1208OBT)

12mm Top Hat (Bore Reducer) to to Suit 10mm Fittings (RED1210OBT)

(100RED1210OBT)
