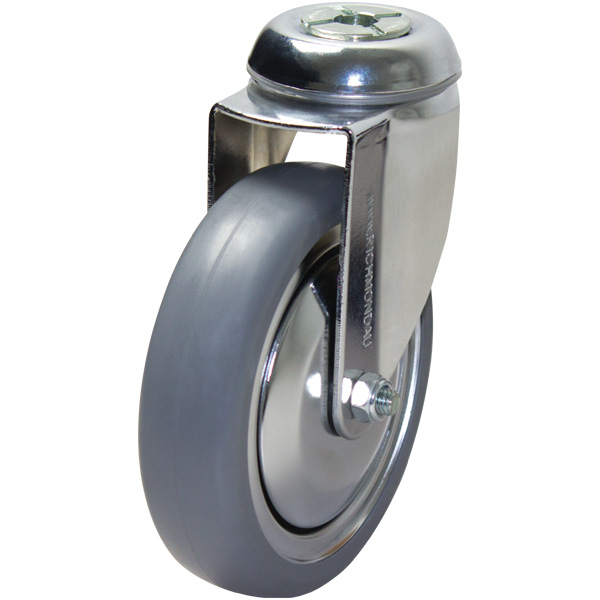

125mm Inst Rubber Swivel Chrome Durolite Castor (S5580)

The S5580 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a institutional rubber wheel. This swivel castor is one of our chrome durolite bolt range and has a top load capacity of 100kg. The S5580 is assembled with ball bearings on the castors axle and is bolt mounted. This castors swivel frame permits the load to be steered. The institutional rubber wheel diameter is 125mm, the wheel width is 32mm and can be ordered separately (iR5004).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

Product Code	S5580
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR5004
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45
