125mm Inst Rubber Swivel Chrome Durolite Castor (S5580D)

The S5580D by Richmond Rolling Solutions is a swivel frame castor and has a institutional rubber wheel. This swivel castor is one of our chrome durolite bolt range and can safely take loads up to 100kg. The S5580D uses ball bearings for wheel rotation and is bolt mount. This castors swivel frame allows the load to be steered. The outside diameter of the institutional rubber wheel is 125mm, the wheel width is 32mm and can be ordered separately (iR5004). This model can also be ordered without the direction lock (part number S5580).

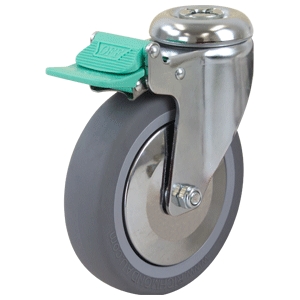

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

Product Code	S5580D
Wheel Diameter (mm)	125
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR5004
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45
