125mm Nylon Wheel 100kg Capacity Castor (S5590D)

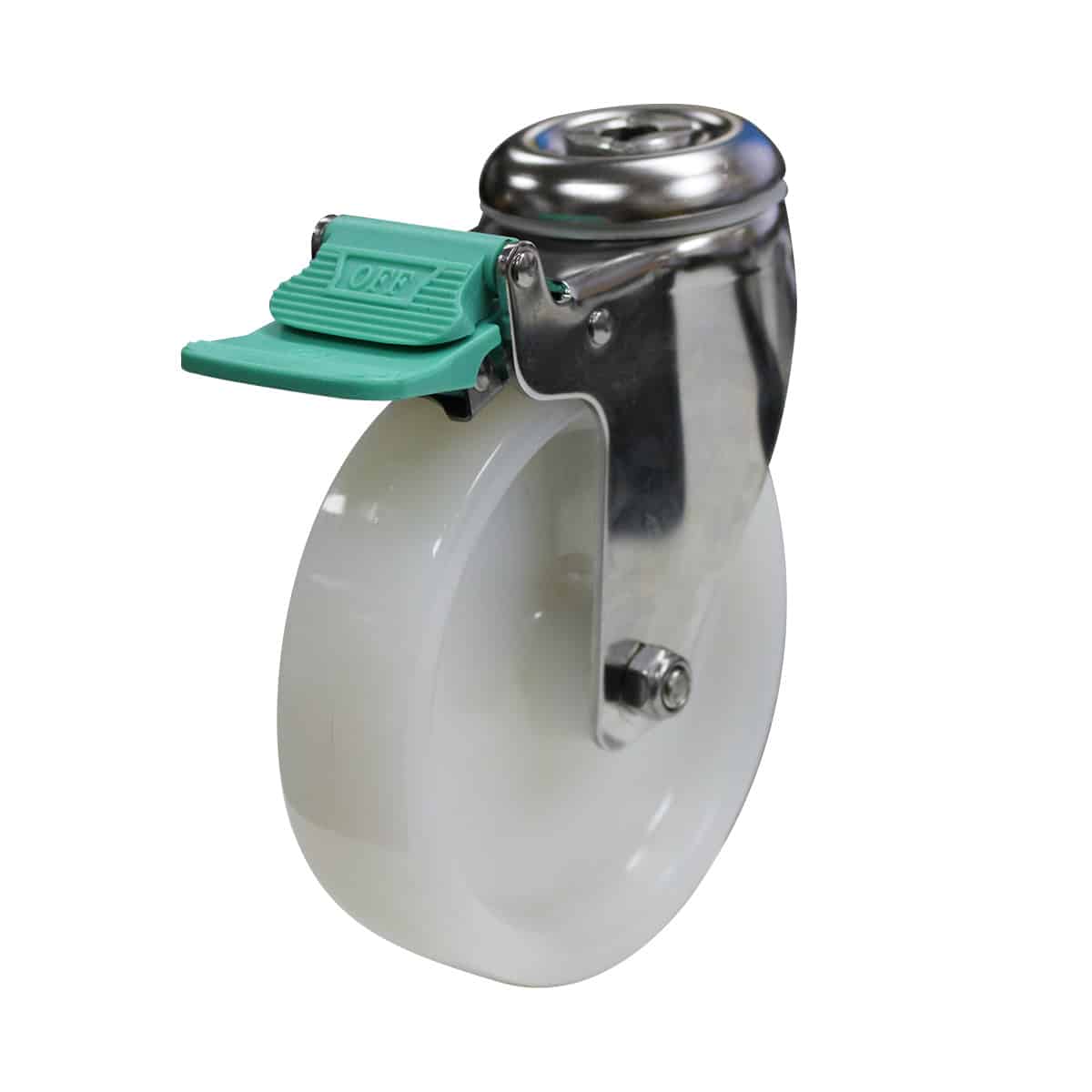

The S5590D by Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 100kg. The S5590D uses plain bearings for wheel rotation and is mounted with a bolt. The swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 125mm, the wheel width is 30mm and can be ordered separately (NY5517). For the same castor without a direction lock, see S5590.

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

View Specifications View Specifications Shipping Information

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code	S5590D
Wheel Diameter (mm)	125
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY5517
Wheel Bearing Type	Plain Bore
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
