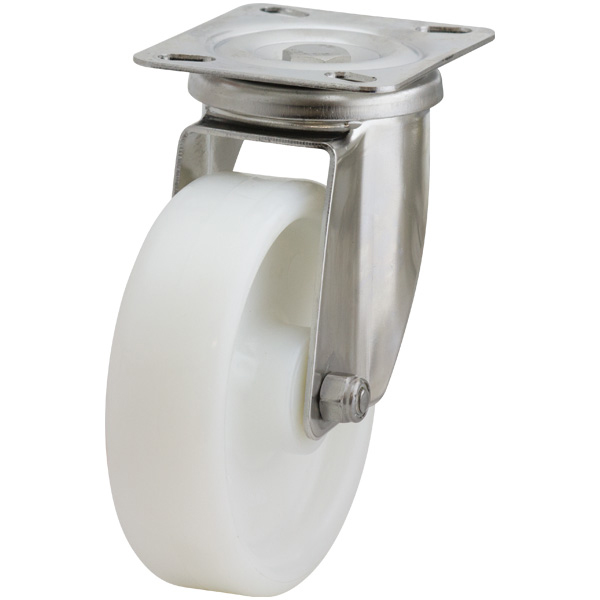

125mm Nylon Wheel 200kg Capacity Castor (S5142)

The S5142 from Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is one of our stainless steel excel plate range and can hold loads up to 200kg. The S5142 is assembled with plain bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The nylon wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). This model can also be ordered with a brake (part number S5142B).

View Specifications View Specifications Shipping Information

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code	S5142
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY501
Wheel Bearing Type	Plain Bore
Castor Height (mm)	158
Swivel Radius (mm)	120
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	110
