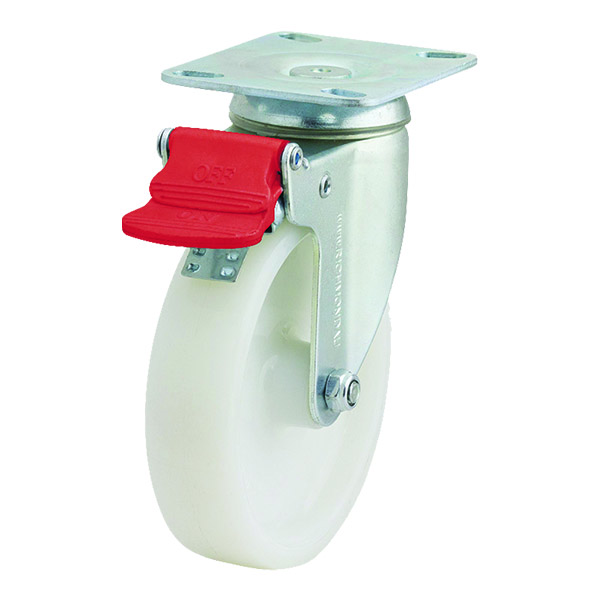

125mm Nylon Swivel Zinc Durolite Castor (S5102B)

Available with a wide range of wheels, the Zinc Durolite Plate Series is commonly used on a vast array of mobile equipment. Enhanced by a twin swivel race ensuring longevity making it ideal for use in hospitals, retail shops and general industry. The baseplate of this castors has been designed for flexibility, with the bolt holes being slotted on an angle to allow users a multiple of mounting options. This means that the Zinc Durolite Plate castors can be matched with competitor and imported castors. The redesigned baseplate provides a superior castor for a growing number of uses and equipment.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S5102B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY5517
Wheel Bearing Type	Plain Bore
Castor Height (mm)	161
Swivel Radius (mm)	106
Maximum Load Capacity (kg)	100
