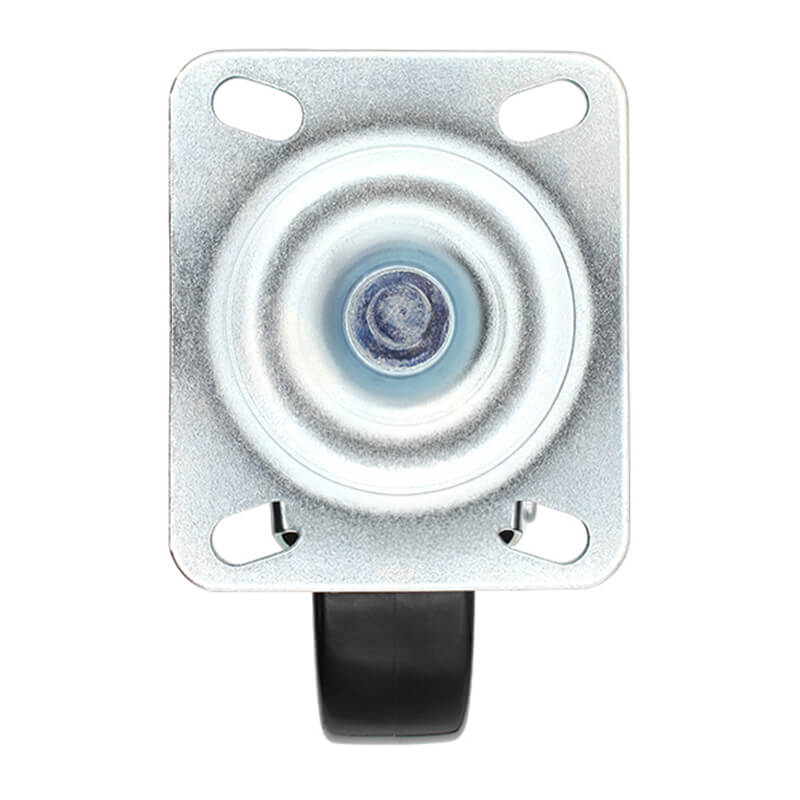

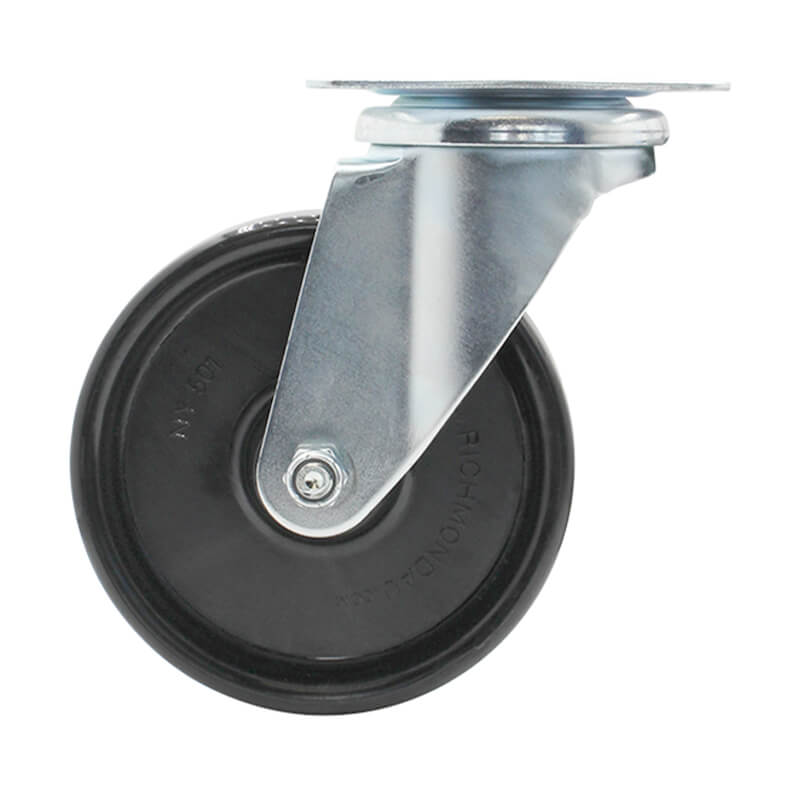

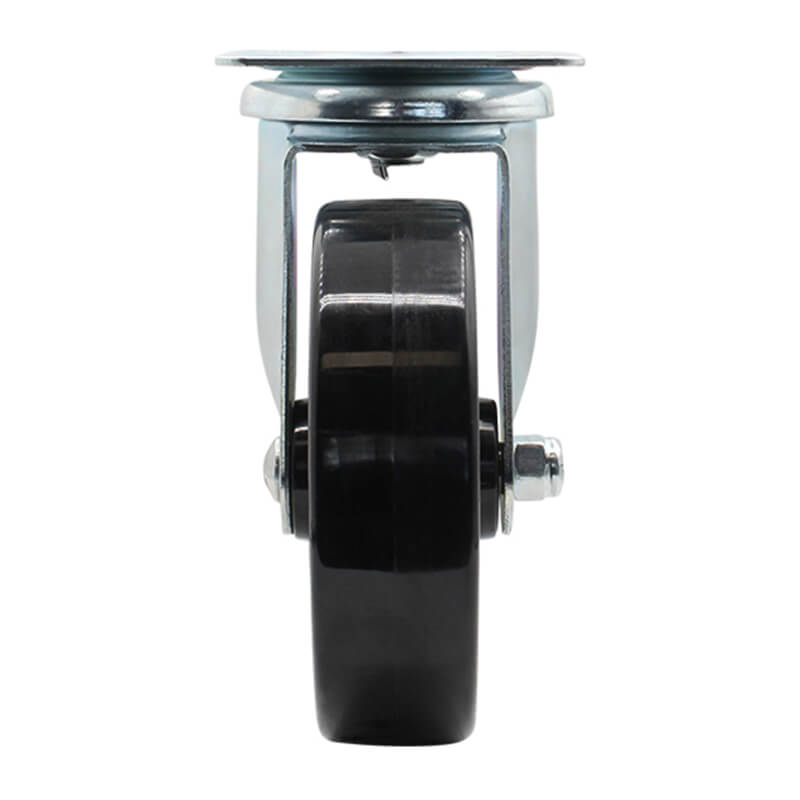

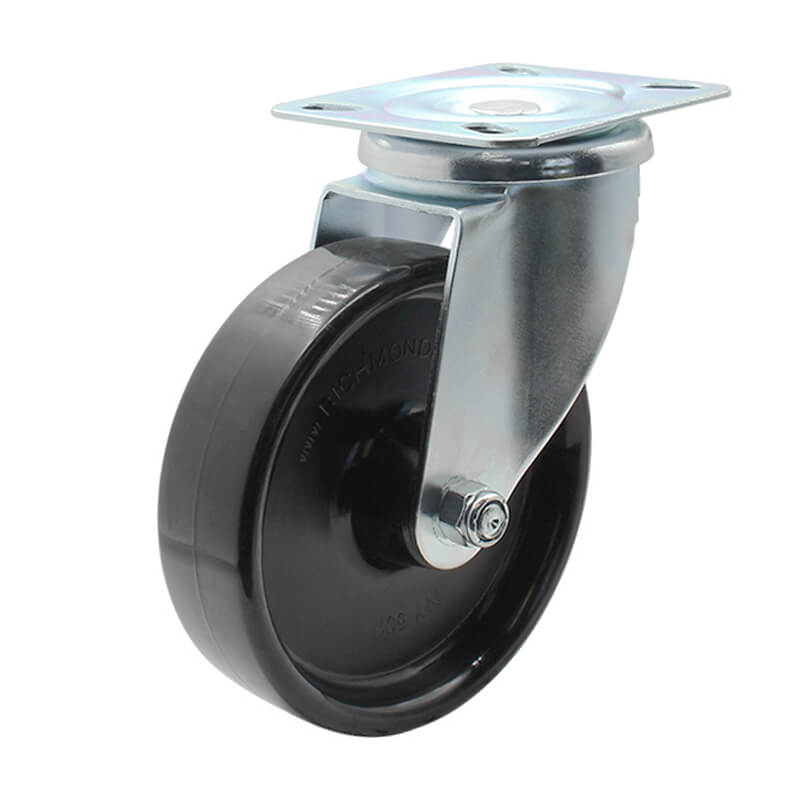

125mm Nylon Wheel 200kg Capacity Castor (S5032)

The S5032 from Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 200kg. The S5032 uses plain bearings for wheel rotation and is baseplate mount. The swivel frame of this castor permits the load to be steered. The diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501). To order this castor with a brake, search for S5032B.

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S5032
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY501
Wheel Bearing Type	Plain Bore
Castor Height (mm)	157
Swivel Radius (mm)	112
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
