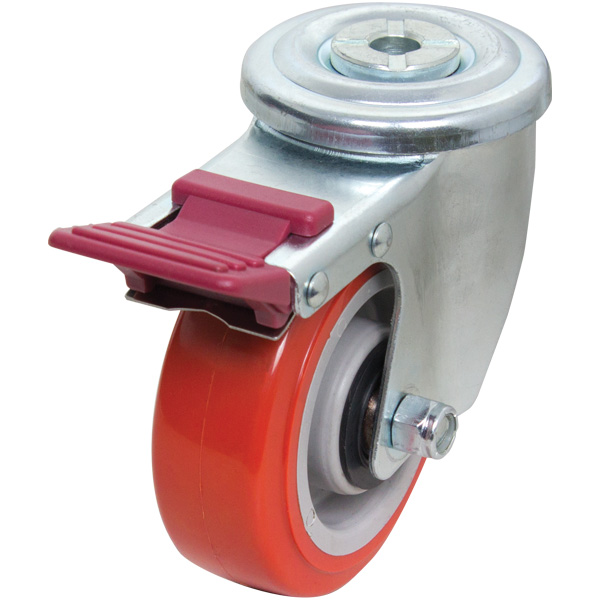

125mm Polyurethane Tyre on Nylon Centre Bolt Hole 300 Series Castor (S5218B)

The S5218B by Richmond Rolling Solutions is a swivel frame castor and features a polyurethane wheel. This swivel castor is part of our 300 series bolt hole range and has a top load capacity of 200kg. The S5218B wheel is fitted with roller bearings and is bolt mount. The swivel frame of this castor allows full swivel rotation to enable steering. The overall polyurethane wheel diameter is 125mm, the wheel width is 35mm and can be ordered separately (PU5508). To order this castor without a brake, search for S5218.

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5218B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU5508
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	157
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Swivel with Brake
