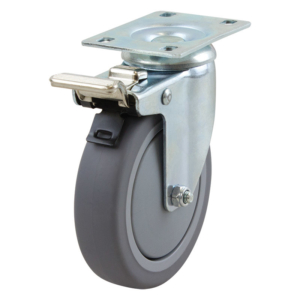

125mm Poly Spring Loaded Swivel Castor (S5088)

Designed to reduce the impact of shocks during transport, providing smoother movement, reduced risk of damage, and a quieter ride. Richmond’s new shock absorbing castors are ideal for use in applications with uneven surfaces or where debris is present. They are also great for moving delicate items where additional vibration and shock to the load could cause damage.

During transport over uneven surfaces the spring supports the load, absorbing the impact instead of transferring it all to the item being transported.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Suitable for use in automotive manufacturing, transport, carts, engineering applications, laboratories, equipment transport, platform trucks, and any industry where reducing shocks and providing smooth movement is important.

Features of our new Spring-Loaded Shock Absorbing Castor Range:

Reduce stress and vibration during transport
Available in 100, 125, 150, and 200mm wheel diameters
Load capacities of up to 200kg per castor
Steel dust cap to protect the wheel and bearing
Ball bearings
Polyurethane tyred wheels
Swivel, rigid, and brake varieties available

Please note: If the load capacity of the castor is exceeded the spring will not function as intended.

Click one of the links below to see tests on the castors load capacity/operating range under dynamic testing conditions:

100mm spring loaded castor operating range test

150mm spring loaded castor operating range test

Product Code	S5088
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	119
Swivel Radius (mm)	119
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	100
