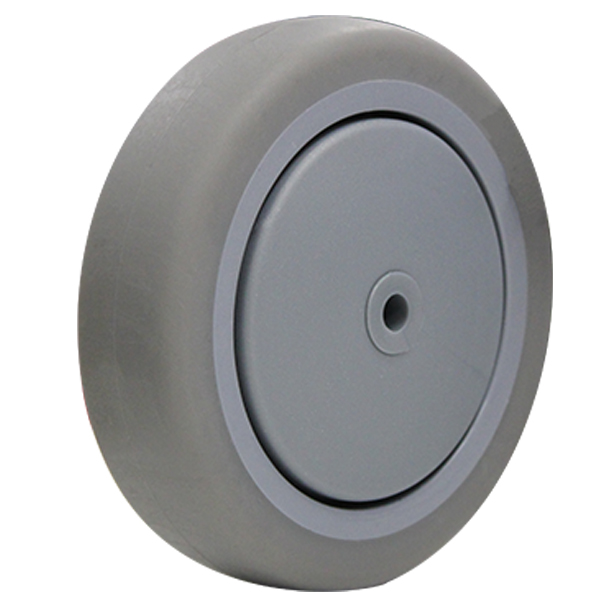

125mm Institutional Rubber Wheel | 5/16" Axle Diameter (IR5007-31)

Our institutional rubber wheels are made from non marking grey rubber and are suited to light loads.The IR5007-31 by Richmond Rolling Solutions is a 125mm diameter institutional rubber wheel that can hold loads up to 100kg and has a tyre width of 32mm.The following Richmond castors use this wheel (not necessarily with the same axle diameter) R5526, S5525, S5525B.This wheel is designed to suit 5/16 inch (7.94mm) axles and this wheel is available for the following alternative axle size: 3/8 inch (9.52mm).

View Specifications View Specifications Shipping Information

Specifications

Product Code	IR5007-31
Wheel Diameter (mm)	125
Tyre Width (mm)	32
Boss Width (mm)	41
Axle Diameter	5/16 inch (7.95 mm)
Wheel Bearing Type	Ball Bearing
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
