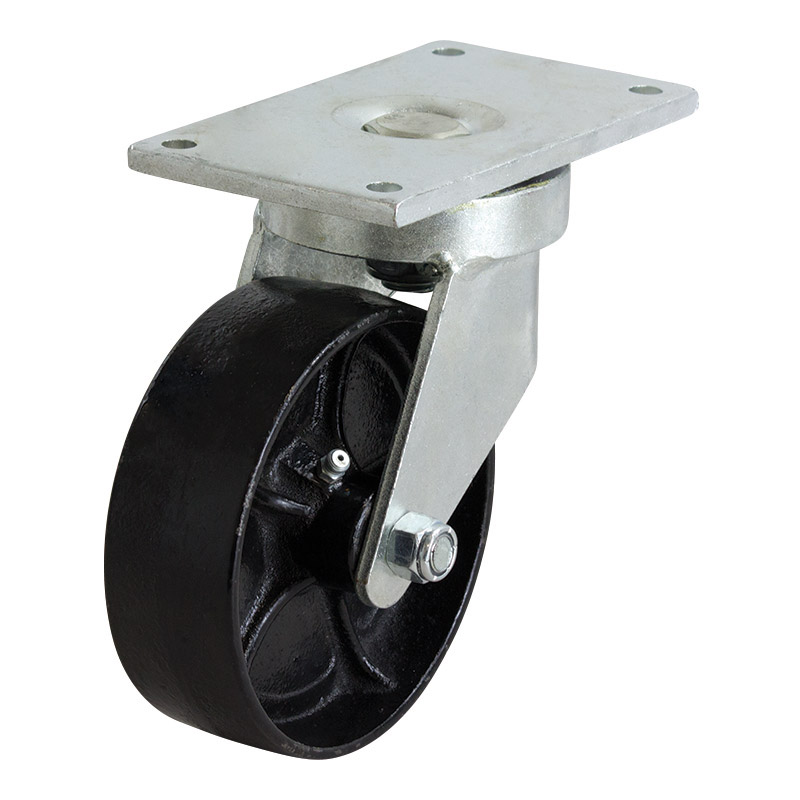

150mm SG Iron Wheel 500/400kg Capacity Waste Bin Castor (S6010)

The S6010 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a semi pneumatic wheel. This swivel castor is part of our waste bin range and has a top load capacity of 500kg. The S6010 is assembled with plain bearings on the castors axle. This castors swivel frame allows the load to be steered. The outside diameter of the semi pneumatic wheel is 150mm, the wheel width is 50mm and can be ordered separately (SG607).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond Waste Bin Castors are the most recognised castors in the waste bin industry and used by all the leading waster providers because of their renowned strength, durability and longevity in a highly demanding application. With load capacities up to 500kg per castor we have developed and designed this castor with a high tensile steel kingpin, precision machined ball race and a welded swivel lock and brake. To make inventory and ordering easy, Richmond can supply waste bin castors in sets, comprising of 2 x swivel castors and 2 x rigid castors, as well as brake options.

Product Code	S6010
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	SG Iron
Wheel Code	SG607
Wheel Bearing Type	Plain Bore
Castor Height (mm)	194
Swivel Radius (mm)	130
Maximum Load Capacity (kg)	500
Recommended Load Capacity (kg)	400
