150mm Cast Iron Wheel 500kg Capacity Castor (R6711)

Wheel Diameter: 150mm

Castor Frame Type: Rigid

Wheel Width: 45mm

Wheel Type: Cast Iron

Wheel Code: Ci611

Wheel Bearing Type: Plain Bore

Castor Height: 194mm

Maximum Load Capacity: 500kg

Recommended Load Capacity: 380kg

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

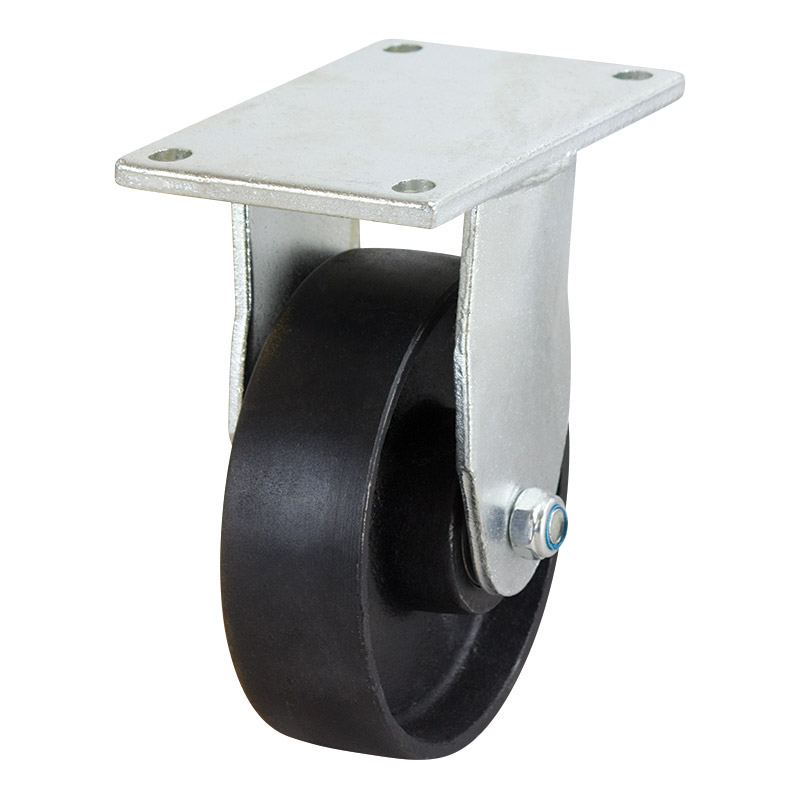

The R6711 manufactured by Richmond Rolling Solutions is a rigid frame castor and uses a cast iron wheel. This rigid castor is in our 500 series range and can hold loads up to 500kg. The R6711 wheel is fitted with plain bearings. The rigid frame allows for steering only when used with swivel castors. The diameter of the cast iron wheel is 150mm, the wheel width is 45mm and can be ordered separately (Ci611).
