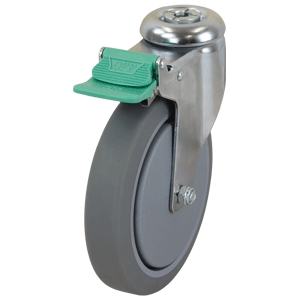

150mm Inst Rubber Swivel Single Bolt Castor (S6080D)

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.Ideal for use on mobile equipment in hospitals, nurseries, shops, industry and catering equipment the single bolt zinc durolite series can be fixed with a range of fittings to round or square tubing ensuring maximum functionality and performance. Available in a various colours for an aesthetically enhanced appearance designed to blend in with the equipment. This castor features a twin race swivel action for long life with pressed metal frame and zinc plated finish.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S6080D
Wheel Diameter (mm)	150
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR6009
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	187
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
