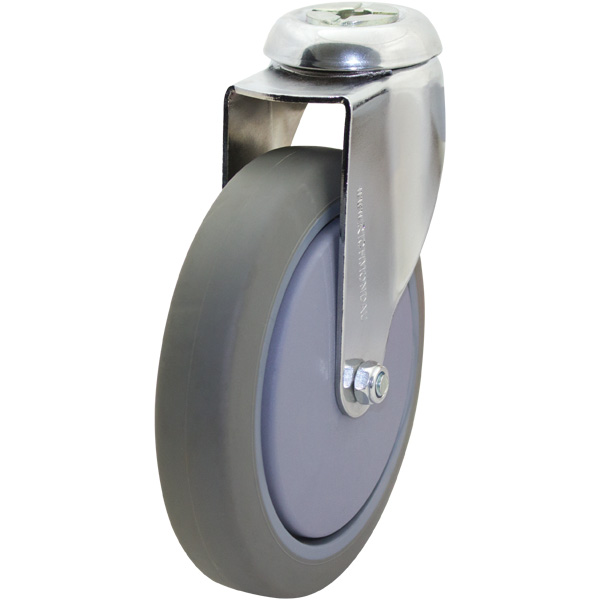

150mm Inst Rubber Swivel Chrome Durolite Castor (S6680)

The S6680 from Richmond is a swivel frame castor and has a institutional rubber wheel. This swivel castor is part of our chrome durolite bolt range and has a top load capacity of 100kg. The S6680 uses ball bearings for wheel rotation and is bolt mount. The swivel frame of this castor permits the load to be steered. The outside diameter of the institutional rubber wheel is 150mm, the wheel width is 32mm and you can order separately (Part Number: iR6009).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

Product Code	S6680
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR6009
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	187
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45
