150mm Poly Ci Wheel 500Kg Capacity Castor (R6271)

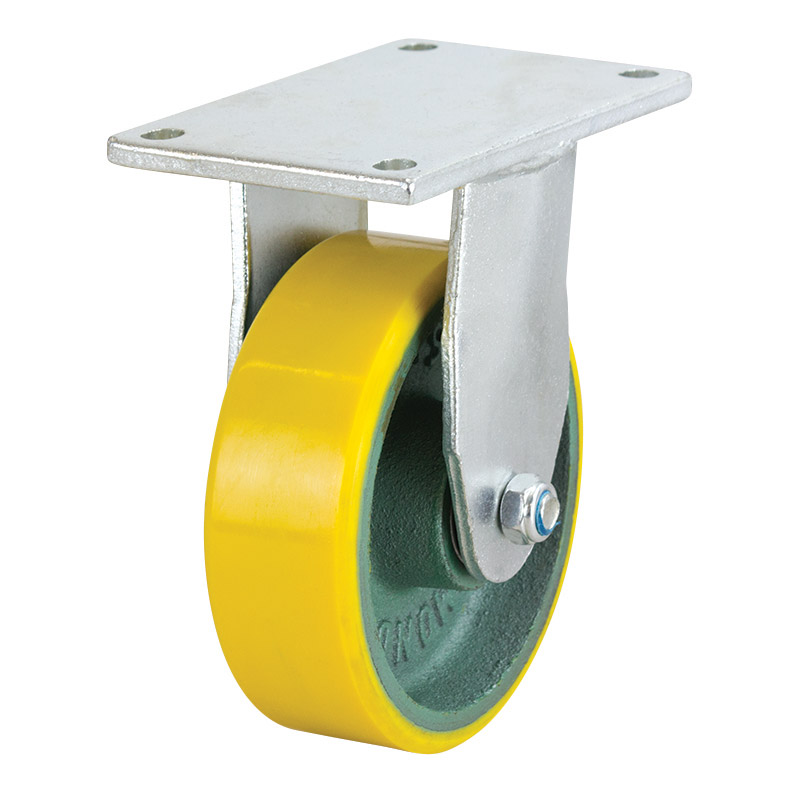

The R6271 from Richmond is a rigid frame castor and uses a polyurethane tyred cast iron wheel. This rigid castor is one of our 500 series range and can hold loads up to 500kg. The R6271 wheel is fitted with ball bearings. The rigid frame design of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The polyurethane tyred cast iron wheel diameter is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU649).

View Specifications View Specifications Shipping Information

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6271
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU649
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Maximum Load Capacity (kg)	500
Recommended Load Capacity (kg)	380
Towable	Yes
