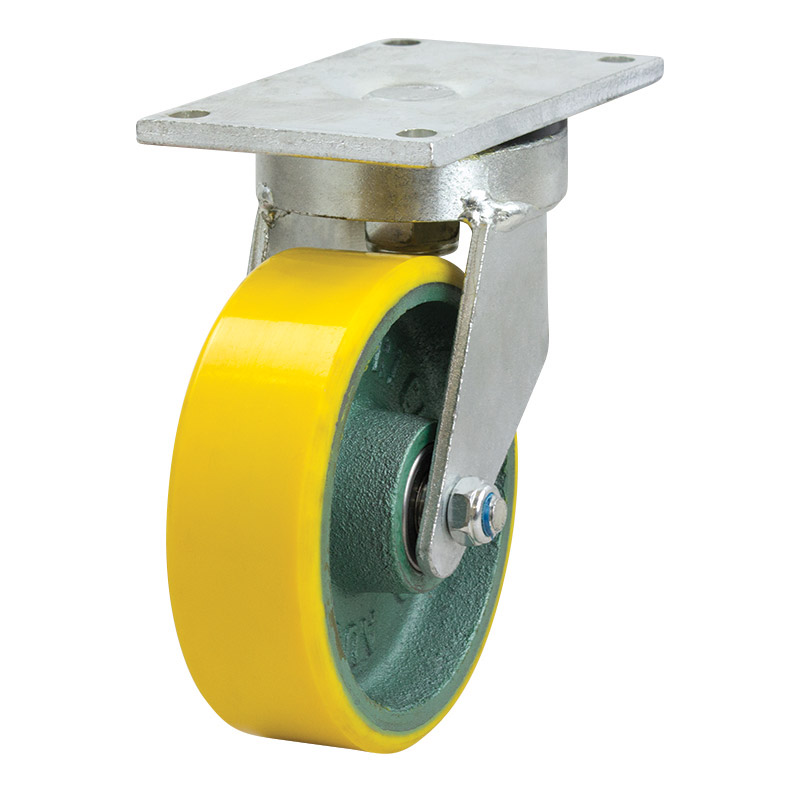

150mm Poly Ci Wheel 500Kg Capacity Castor (S6270)

The S6270 manufactured by Richmond is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is in our 500 series range and has a maximum capacity of 500kg. The S6270 wheel is fitted with ball bearings. This castors swivel frame allows full swivel rotation to enable steering. The overall polyurethane tyred cast iron wheel diameter is 150mm, the wheel width is 50mm and can be ordered separately (PU649).

View Specifications View Specifications Shipping Information

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S6270
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU649
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Swivel Radius (mm)	130
Maximum Load Capacity (kg)	500
recommended-load-capacity-kg
Towable	Yes
