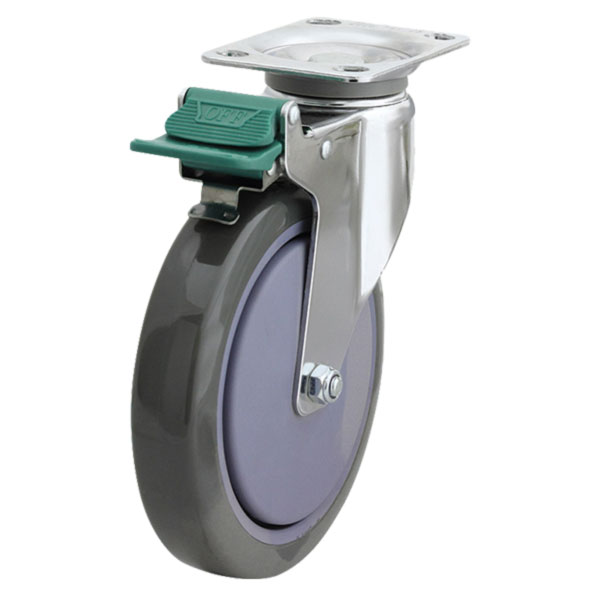

150mm Poly Nylon Swivel Chrome Durolite Castor (S6688D)

The S6688D manufactured by Richmond is a swivel frame castor and has a polyurethane wheel. This swivel castor is in our chrome durolite plate range and can safely take loads up to 100kg. The S6688D uses ball bearings for wheel rotation and is plate mount. This castors swivel frame allows the castor to swivel 360°. The overall polyurethane wheel diameter is 150mm, the wheel width is 30mm and you can order separately (Part Number: PU6660). This model can also be ordered without the direction lock (part number S6688).

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Truly the best looking durable castor in its class, Richmond’s Chrome Durolite Series is ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. The combination of a pressed metal frame and chrome finish provides both strength and corrosion resistance. A robust twin swivel race design provides durability and longevity in the workplace.

Product Code	S6688D
Wheel Diameter (mm)	150
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	30
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU6660
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	190
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
