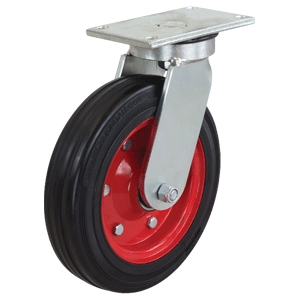

250mm Cushion Rubber 300kg Capacity Castor (S1025)

The S1025 by Richmond Rolling Solutions is a swivel frame castor and features a cushion rubber wheel. This swivel castor is in our 500 series range and can safely take loads up to 300kg. The S1025 uses ball bearings for wheel rotation. The swivel frame of this castor allows full swivel rotation to enable steering. The outside diameter of the cushion rubber wheel is 250mm, the wheel width is 50mm and you can order separately (Part Number: CR1060). This model can also be ordered with a brake (part number S1025B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S1025
Wheel Diameter (mm)	250
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Cushion Rubber
Wheel Code	CR1060
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	302
Swivel Radius (mm)	180
Maximum Load Capacity (kg)	300
recommended-load-capacity-kg
Towable	Yes
