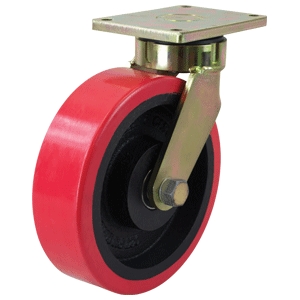

250mm Poly CI Wheel 1300kg Capacity Castor (S1017PU)

The S1017PU manufactured by Richmond is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is part of our high performance series range and has a maximum capacity of 1300kg. The S1017PU wheel is fitted with ball bearings. This castors swivel frame allows the load to be steered. The diameter of the polyurethane tyred cast iron wheel is 250mm, the wheel width is 75mm and you can order separately (Part Number: PU1076).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

When performance and endurance are key concerns, the High Performance castor is world class. A large opposed taper roller bearing in the swivel head means the castor can be power towed at speeds up to 12kph over flat surfaces without obstructions. The steel passivated zinc plated frame is robot welded and a fully sealed greasable swivel head make this castor easy to maintain. Richmond’s High Performance Series is custom designed and manufactured in-house to specification.

Product Code	S1017PU
Wheel Diameter (mm)	250
Frame Type	Swivel
Wheel Width (mm)	75
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1076
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	312
Swivel Radius (mm)	210
Maximum Load Capacity (kg)	1300
Towable	Yes
