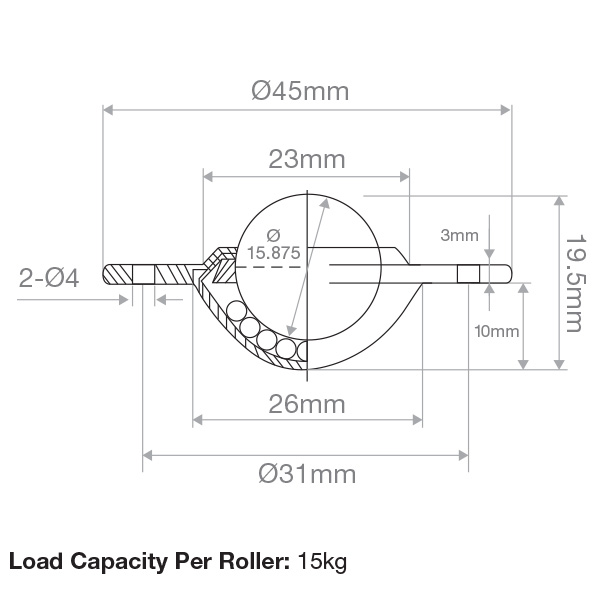

304 Stainless Steel Recessed Flange Mount Ball Transfer 15.8mm Roller Diameter (BTR216SS)

Material: Grade 304 Stainless Steel

Ball Diameter: 5/8″ (15.8mm)

Overall Height: 19.5mm

Recessed Height: 9.5mm

Hole Centres: 31mm

Mounting Hole Diameter: 4mm

Load Capacity: 15kg

Also available in mild steel, mild steel part number BTR216MS

Commonly used around presses, guillotines and machining centres, Richmond’s Ball Transfer enable smooth and simple transfers of objects in any direction. Multi directional movement is essential where the need to move heavy loads is paramount. Consisting of a large load bearing roller sitting upon many smaller balls encapsulated in a cup the engineering in this design makes for a perfect transfer station from one conveyor to another. Richmond can customise ball transfer tables to suit your application whether the requirement is for a recessed transfer table or a multiple ball transfers in a designated area.
