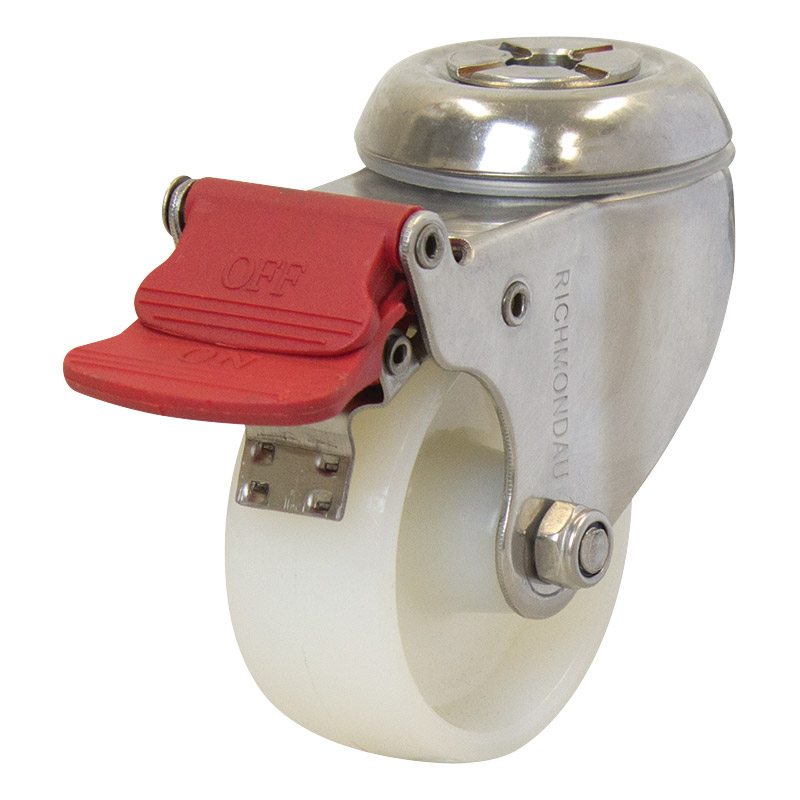

75mm Nylon Wheel 80kg Capacity Castor (S3390B)

he S3390B manufactured by Richmond Rolling Solutions is a swivel frame castor and has a nylon wheel. This swivel castor is part of our stainless steel elite bolt range and can safely take loads up to 80kg. The S3390B wheel is fitted with plain bearings and is bolt mounted. The swivel frame allows for full 360° swivel rotation. The overall nylon wheel diameter is 75mm, the wheel width is 30mm and can be ordered separately (NY3321). For the same castor without a brake, see S3390.

View Specifications View Specifications Shipping Information

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code	S3390B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY3321
Wheel Bearing Type	Plain Bore
Castor Height (mm)	105
Swivel Radius (mm)	105
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45
