Floor Mount Bolt Down Door Guide (GTR077)

$17.50 ex. GST
$19.25 inc. GST

Available Online

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

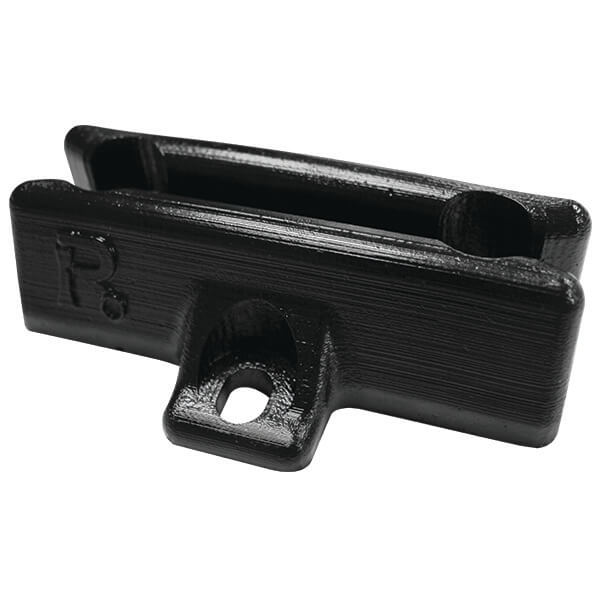

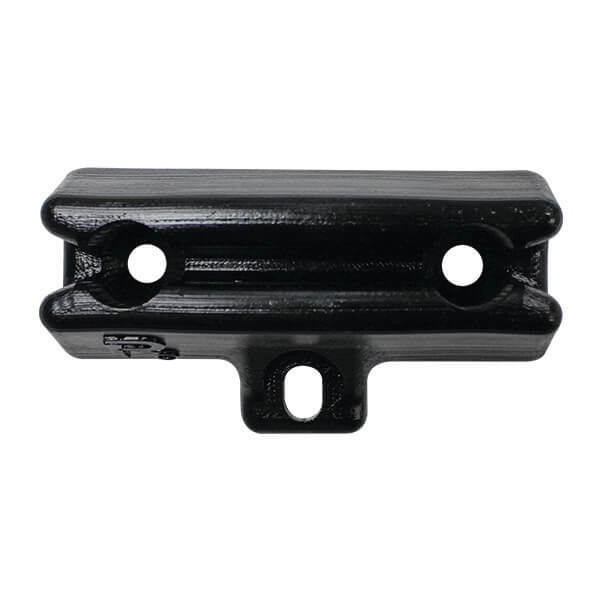

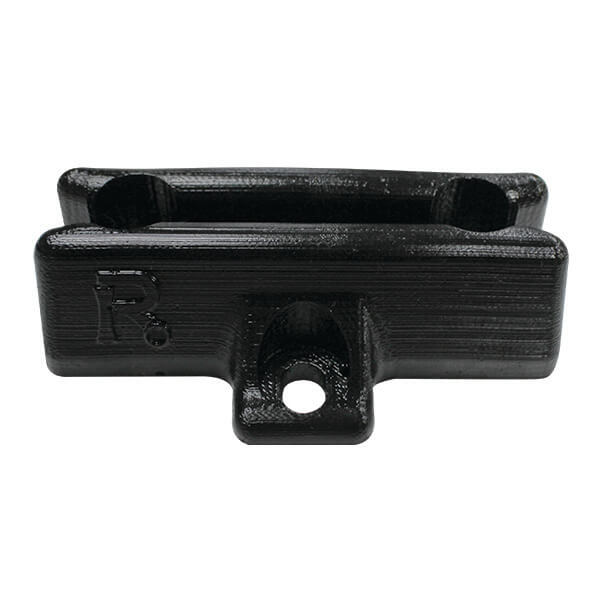

This bolt down bracket supports your door and provides smooth movement when being moved by Richmond’s hanging rollers.

To use: fix a guide plate to the bottom of your door, this guide plate sits in the middle of the GTR077 guide as the door is moved open and closed.

The guide plate can be either flat bar, or angle iron. 6mm thick.

To fasten the GTR077 to the ground, we recommend using:

  • For Concrete: 2x Countersunk concrete screw anchors, or traditional dynabolts M6 x 50mm
  • For Timber: 2x Countersunk timber screws M6 x 50mm

Length: 150mm

Width: 63mm

Channel Width: 7mm

Channel Depth: 25mm

Height: 34mm
