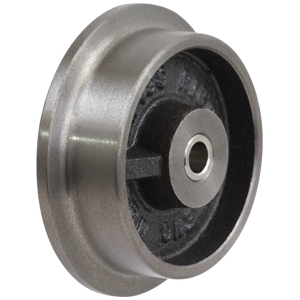

100mm Single Flange Track Wheel | 3/4" Axle Diameter (SF499-75)

Product Name : Track Wheels – Single Flange

Wheel Diameter(mm): 100

Rim Width (mm): 25

BOSS WIDTH(mm): 42

Flange Width(mm): 10

Flange Diameter(mm): 120

Boss Diameter(mm): 40

AXLE DIAMETER: 3/4 inch (19.05mm)

BEARING TYPE: Plain Bearing

LOAD CAPACITY(kg): 375

WHEEL CODE: SF499-75

The SF499-75 by Richmond is a 100mm diameter single flange track wheel wheel.The axle diameter is 3/4 inch (19.05mm) and this wheel is available for the following alternative axle size: 3/8 inch (9.52mm), 1/2 inch (12.7mm).
